Wooden and Wood Look Venetian Blind Installation

Installing your blinds is really easy with our simple installation guides!

ITEMS:

  1. Wooden or Wood Look Blind
  2. Pelmet (bundled together with longest blind if multiple blinds ordered)

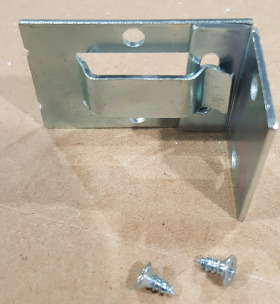

  3. Brackets and Screws (provided)
  4. Hold Down Clips (optional)

TOOLS REQUIRED:

  1. Cordless drill with #2 Phillips Drill Bit

TIPS:

  • Ensure you have a clean work area to start
  • A second person is helpful when installing blinds wider than 2000mm
  • Take note of the window locations as stated on the blinds sticker label
  • Be very careful not to cut blind with a sharp object when removing packaging

Wooden and Wood Look Venetian Blind Inside fit

Step 1 Inside fit

Carefully remove bubble wrap and plastic from blind, release brackets and screws. Unpack pelmet which will be either with blind or all bundled together with longest blind if multiple Wood Look blinds ordered. Place left bracket in left corner of window frame. Bracket arm must be facing front.

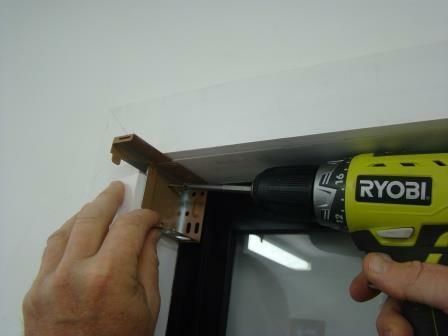

Screw bracket into side or top of frame using 2 screws. There are multiple screw points you can decide whats best for you. Repeat on opposite end.

If using a centre bracket, screw the widest end into the top of the frame like a U shape turned on its side with the open section facing you.

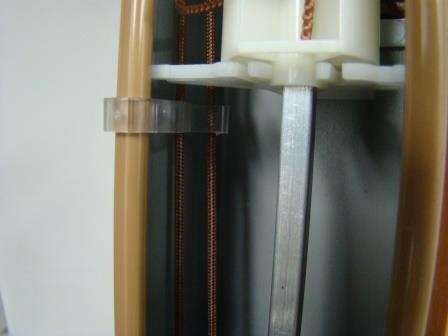

TIP: Take care not to put the centre bracket in the way of the ladder tapes which are inside the headrail.

Step 2 Inside fit

Take cords out of headrail.

Step 3 Inside fit

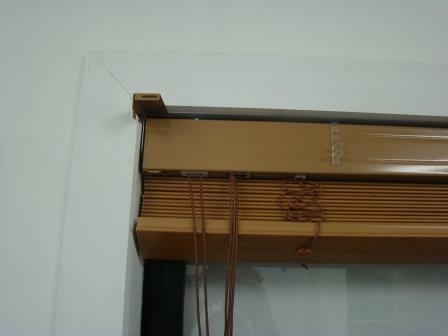

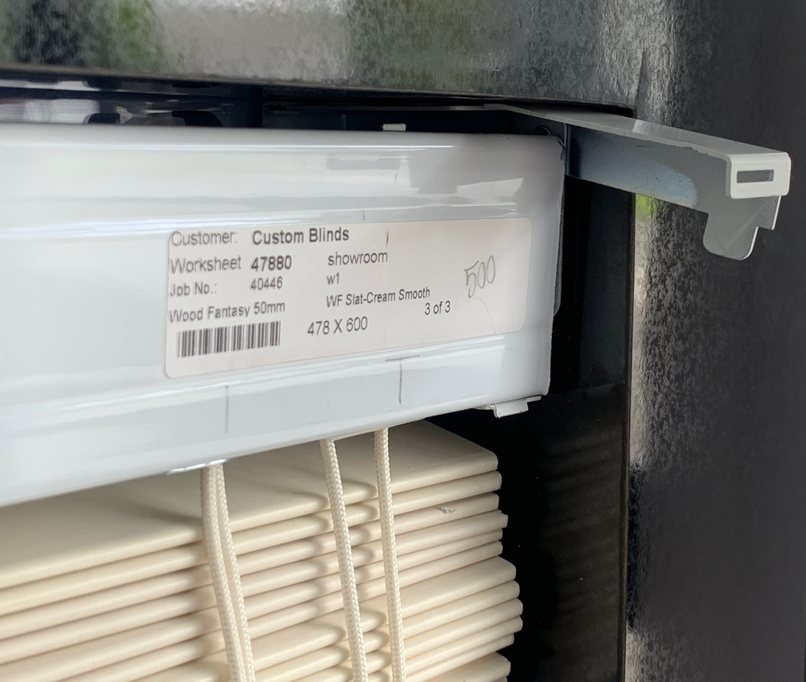

Place headrail into brackets. For larger binds you may need help holding the blind at the other end. Close arms of brackets until they click into place.

Step 4 Inside fit

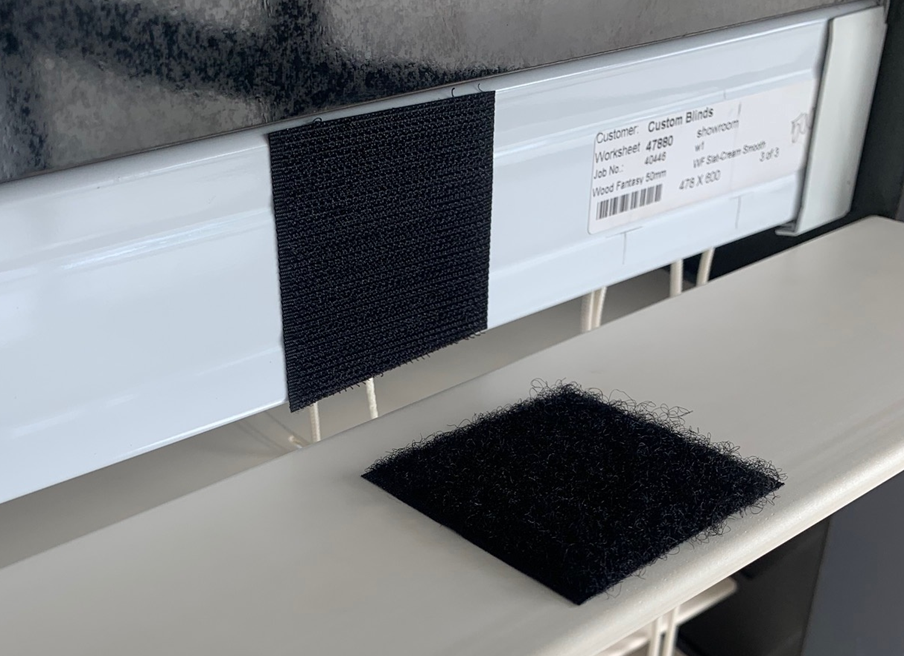

Attach Pelmet securely by removing the white strips on the black Velcro patches on the track.

Composite Blinds Outside fit

Step 1 Outside fit

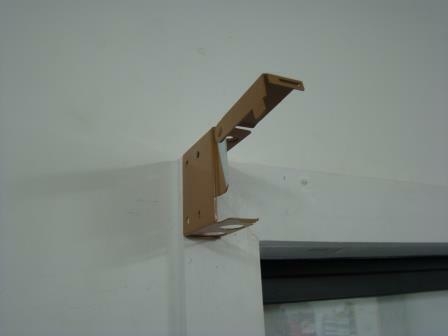

Place left bracket in left corner of window frame. Bracket arm must be facing front.

Screw bracket into side or top of frame using 2 screws. Repeat on opposite end

If using a centre bracket, screw the widest end into the top of the frame.

TIP: Take care not to put the centre bracket in the way of the ladder tapes which are inside the headrail.

Step 2 Outside fit

Take cords out of headrail.

Step 3

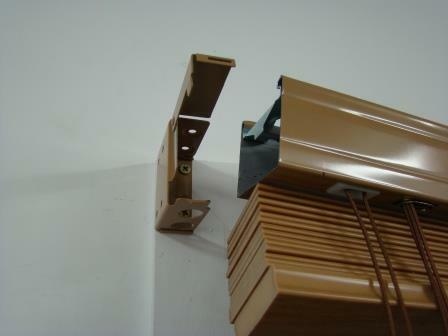

Place headrail into brackets. For larger binds you may need help holding the blind at the other end. Close arms of brackets until they click into place.

Step 4

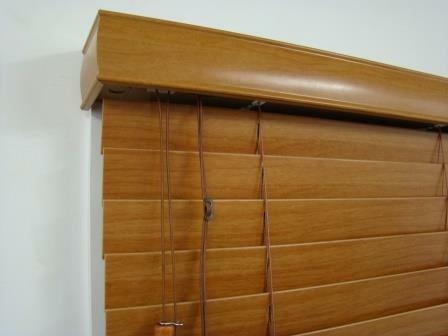

Attach Pelmet securely by removing the white strips on the black Velcro patches on the track.

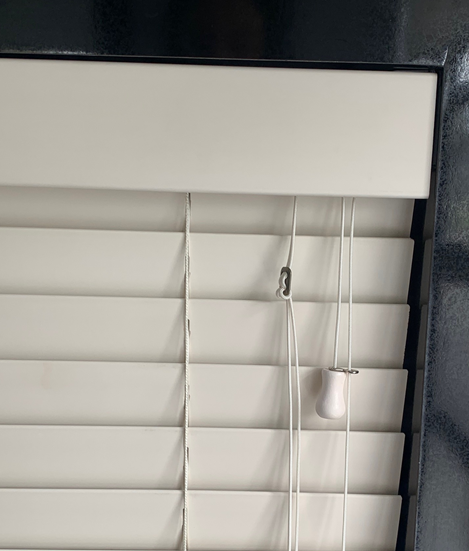

Step 5

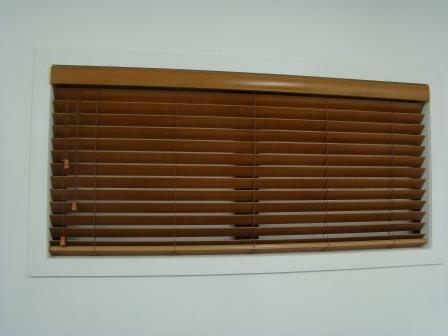

Blind finished.
