Aluminium Venetian Blinds Installation

Installing your blinds is really easy with our simple installation guides!

ITEMS:

  1. Venetian Blind
  2. Brackets and Screws (provided)
  3. Hold Down Clips (optional)
TOOLS REQUIRED:
  1. Cordless drill
  2. Pencil
  3. Tape Measure
  4. 4mm Drill Bit for Outside Fit

TIPS:

  • Ensure you have a clean work area to start
  • A second person is helpful when installing blinds wider than 2000mm
  • Take note of the window locations as stated on the blinds sticker label
  • Be very careful not to cut blind with a sharp object when removing packaging

Aluminium Venetian Blinds Installation Inside Fit

Step 1 Inside fit

Carefully remove outer plastic wrapper, take care not to bend any slats. Once they are bent you cannot bend them back into place without leaving a kink. Release the brackets and screws from the plastic wrap.

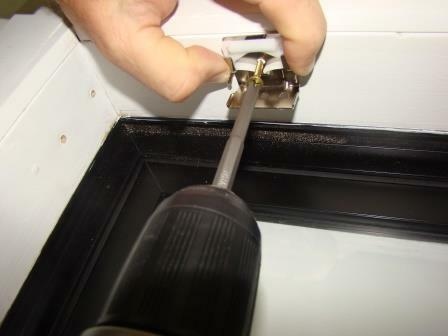

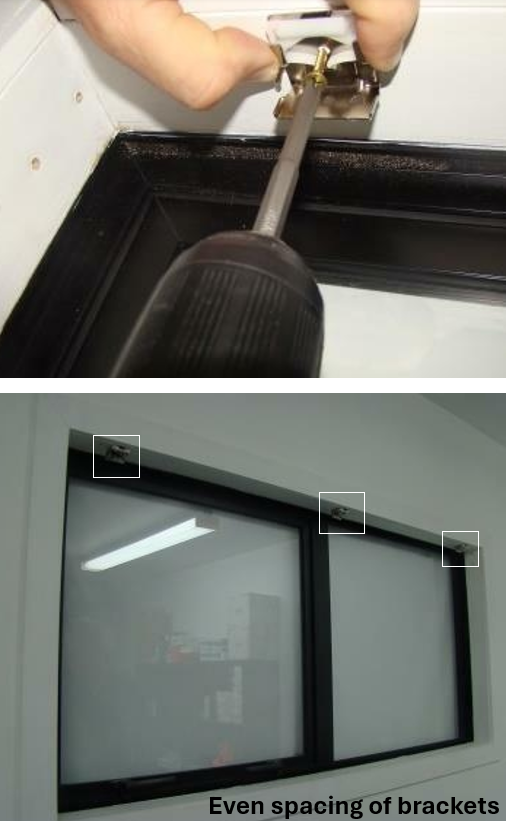

Using a metal tape measure and pencil make a mark at 9cm and 12cm in from the inside edge of the frame. Repeat at the opposite edge. Place the brackets in the middle of the marks and screw into place. The reason for this placement is so that the brackets are clear of the lift and tilt mechanism once the blind is installed.

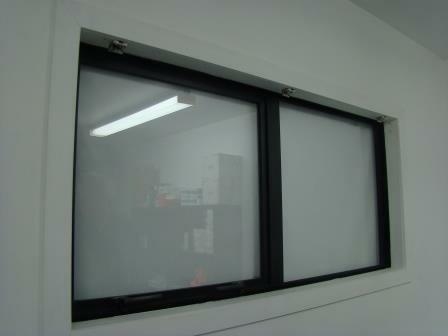

For blinds requiring more brackets space them evenly making sure they don’t interfere with the tape rolls inside the headrail.

Step 2 Inside fit

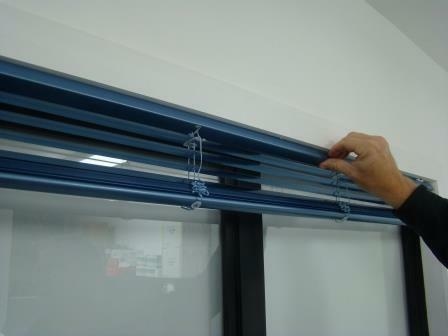

Now that your brackets are evenly secured inside your frame, pick up your Venetian blind, it must be in the up position so leave it pulled up like it came in the packaging. Look down into the tracks headrail, notice the track profile and how the brackets will hook into place.

On the inside front of the headrail at the top there is a lip. Hook this lip over the front of the bracket then push the back of the headrail up into the bracket until you hear it click into place for each bracket.

Step 3 Inside Fit

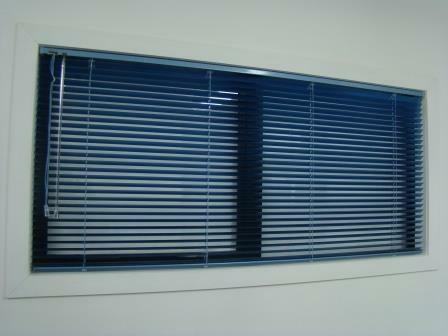

This is how it should look once completed. Pull the cords toward the middle of the blind, this releases the cord lock allowing you to lower the blind. Use the wand to control the angle of the slats.

Frequent lifting and locking off of the blind in the same position daily will wear your cords, overtime requiring a full re-cord. It is advised to leave blinds in down position and tilt as required. If you intend to lift and lock often try locking off blind in different points so the same piece of cord isn't always under the tension the metal cord lock.

OPTIONAL: Hold Down Clips

Hold Down Clips (if required) are mounted at the bottom of the blind to secure the blind in a fixed position. These clips are especially useful to eliminate the possibility of the blind moving around in a breeze especially near doors and can be easily released when you want to pull the blind up for cleaning purposes. When mounting the Hold Down Clips do not put too much tension on the blind to allow for some movement. Place the pin into the end caps of the Venetian blind to lock into place.

Aluminium Venetian Blinds Installation Outside Fit

Step 1 Outside fit

Carefully remove outer plastic wrapper, take care not to bend any slats. Once they are bent you cannot bend them back into place without leaving a kink. Release the brackets and screws from the plastic wrap.

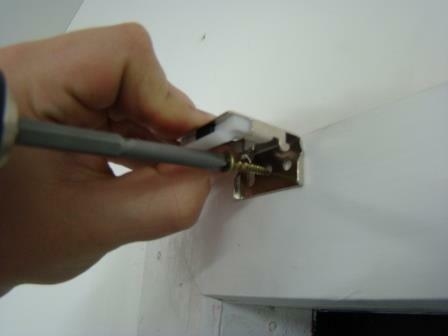

Starting from the left side of the frame, using a metal tape and pencil make a mark at 85mm in from the outside edge of the frame. Repeat at the opposite edge. Pre-drill your holes using a 4mm drill bit so you don't spilt any timber framework.

Place the brackets in the middle of the marks and screw into place. Going 85mm in means the brackets will not interfere with any mechanisms.

For blinds requiring more brackets space them evenly making sure they don’t interfere with the tape rolls inside the headrail.

Step 2 Outside Fit

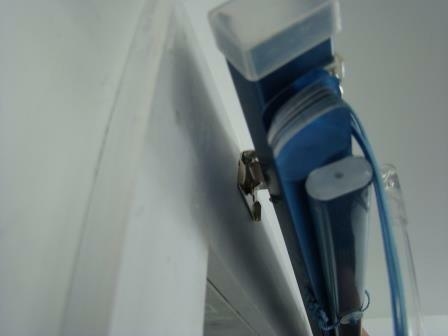

Now that your brackets are evenly secured to your frame, pick up your Venetian blind, it must be in the up position so leave it pulled up like it came in the packaging. Look down into the tracks headrail, notice the track profile and how the brackets will hook into place.

On the inside front of the headrail at the top there is a lip. Hook this lip over the front of the bracket then push the back of the headrail up into the bracket until you hear it click into place for each bracket.

Step 3 Outside Fit

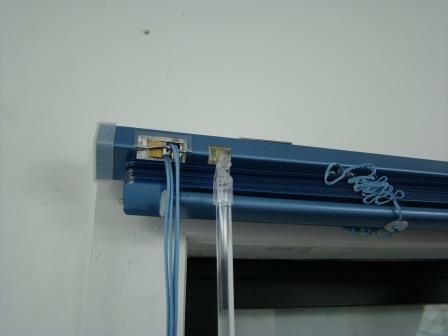

This is how it should look once completed. Pull the cords toward the middle of the blind, this releases the cord lock allowing you to lower the blind. Use the wand to control the angle of the slats.

Frequent lifting and locking off of the blind in the same position daily will wear your cords, overtime requiring a full re-cord. It is advised to leave blinds in down position and tilt as required. If you intend to lift and lock often try locking off blind in different points so the same piece of cord isn't always under the tension the metal cord lock.

OPTIONAL: Hold Down Clips

Hold Down Clips (if required) are mounted at the bottom of the blind to secure the blind in a fixed position. These clips are especially useful to eliminate the possibility of the blind moving around in a breeze especially near doors and can be easily released when you want to pull the blind up for cleaning purposes. When mounting the Hold Down Clips do not put too much tension on the blind to allow for some movement. Place the pin into the end caps of the Venetian blind to lock into place.

Removal

  1. First tilt slats to open position, then draw blind all the way up to lock off in the up position.
  2. Locate position of each bracket, its at these points you must firmly push the blind headrail towards the window to disengage the plastic spring insert on the brackets.
  3. Then pull track downward and out of brackets.
